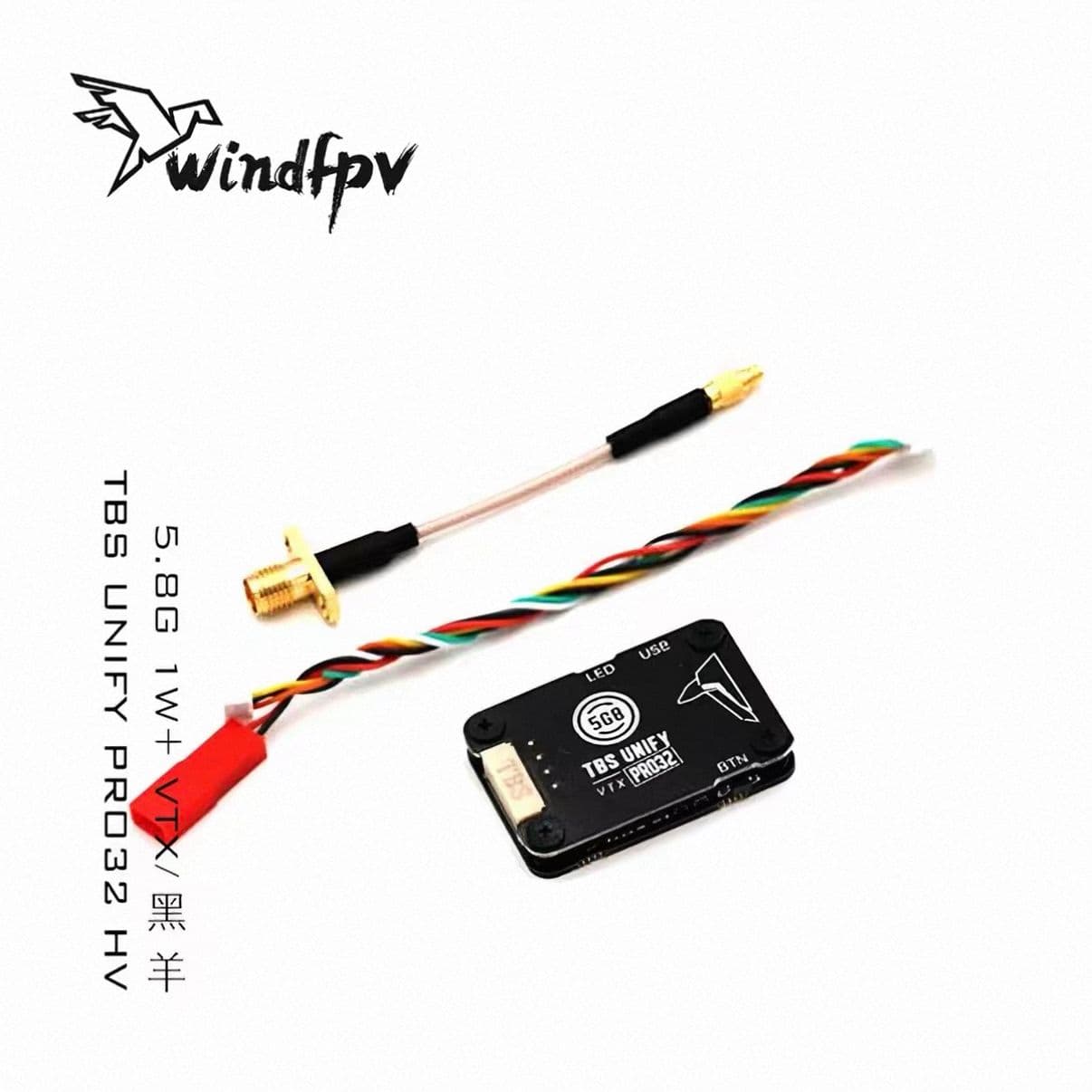

Included:

1x TBS UNIFY PRO32 5G8 HV Video Transmitter

1x Silicone Cable

1x MMCX to SMA PIGTAIL (Straight)

TBS UNIFY PRO32 HV, we have enhanced the output power, improved robustness, reduced power consumption, added more features, and refined its installation method for multi-rotor aircraft. In short, it is a comprehensive, forward-looking, high-quality, high-voltage video transmitter.

Key Features:

- Dual-layer design for rapid cooling and durability

- Output power over 1000mW

- Ultra-clean transmission (up to 16 aircraft at once)

- PitMode - Maintenance Mode with almost zero power consumption

- Simple OSD, FC and RC channel changes, with a back button menu

- Powerful RF amplifier can be powered on for hours without an antenna!

- Clean power-on and video switching

- CE certified

- Built-in microphone

- PitMode - Maintenance Mode

- Zero interference even when powered on is now possible! If you have ever repaired a FPV aircraft during a competition, you will know the frustration of not being able to start and test the system. With PitMode, we reduce the output power to a minimum (below single-digit mW) to power the FPV aircraft and still see the image! Your FPV aircraft is less than one meter away from the starting grid. With SmartAudio or CRSF, you can start the VTx with your controller!

- SMARTAUDIO V2.1 #0CRSF - TEAM RACE READY

- SmartAudio technology provides UART control for your entire video transmitter. Parameters such as output power, band, channel, and frequency can be freely controlled. This allows direct control from smart devices (requires TBS Crossfire, external Bluetooth or Wi-Fi module), or radio (requires TBS Tango or OpenTX compatible controller). BS Crossfire EXOSD (1512lBetaflight OSD, TBS CORE PR

O) Remote Channel Control

With all these options, you should find something that suits you. Together with CleanSwitch, the sky is the limit... Jumping between channels without interfering with pilots in the air, creating backup/emergency frequencies, and global VTx power adjustments by race organizers or other smart systems aimed at simplifying and improving race management are all potential possibilities!

CLEANSWITCH - Neighbor Friendly

CleanSwitch is a technology developed by TBS that ensures your video transmitter does not cause interference when powered on or when changing channels. All current video transmitters slide across the entire frequency band when powered on, causing anyone in the air to experience flickering and severe interference regardless of the video channel selected. TBS CleanSwitch allows you to power on and change channels while your friends are in the air without any external interference. CleanSwitch is race-friendly and pilot-friendly... That's what we like at TBS :) Product Name:

TBS UNIFY PRO32 HV (MMCX)

Product Specifications:

Working voltage: 6V - 25V (2 - 6S)

Operating temperature: Ensure normal airflow

Video input impedance: 75 ohms

Weight: 8.7 grams

Dimensions: 37 x 25 x 5.8 mm

Antenna connector: MMCX

Video format: NTSC / PAL

Output power: 14dBm(25mW),20dBm(100mW),26dBm(400mW),30dBm+(1000mW+)
