Specifications
Camera
• Model: Avatar HD Pro Camera
• Image Sensor: 1/1.8” Sony Starvis II sensor
• Resolution:
• 1080P/60fps
• 720P/120fps
• 720P/60fps
• 1080P/100fps compatible
• 1080P/120fps compatible
• Aspect Ratio: 16:9, 4:3
• Lens: 8MP
• Field of View: 160°
• Aperture: F1.6
• Shutter: Rolling shutter
• Minimum Illumination: 0.00001 lux
• Weight: 9.5 g
• Dimensions: 19 × 19 × 24 mm
• Coaxial Cable Length: 140 mm

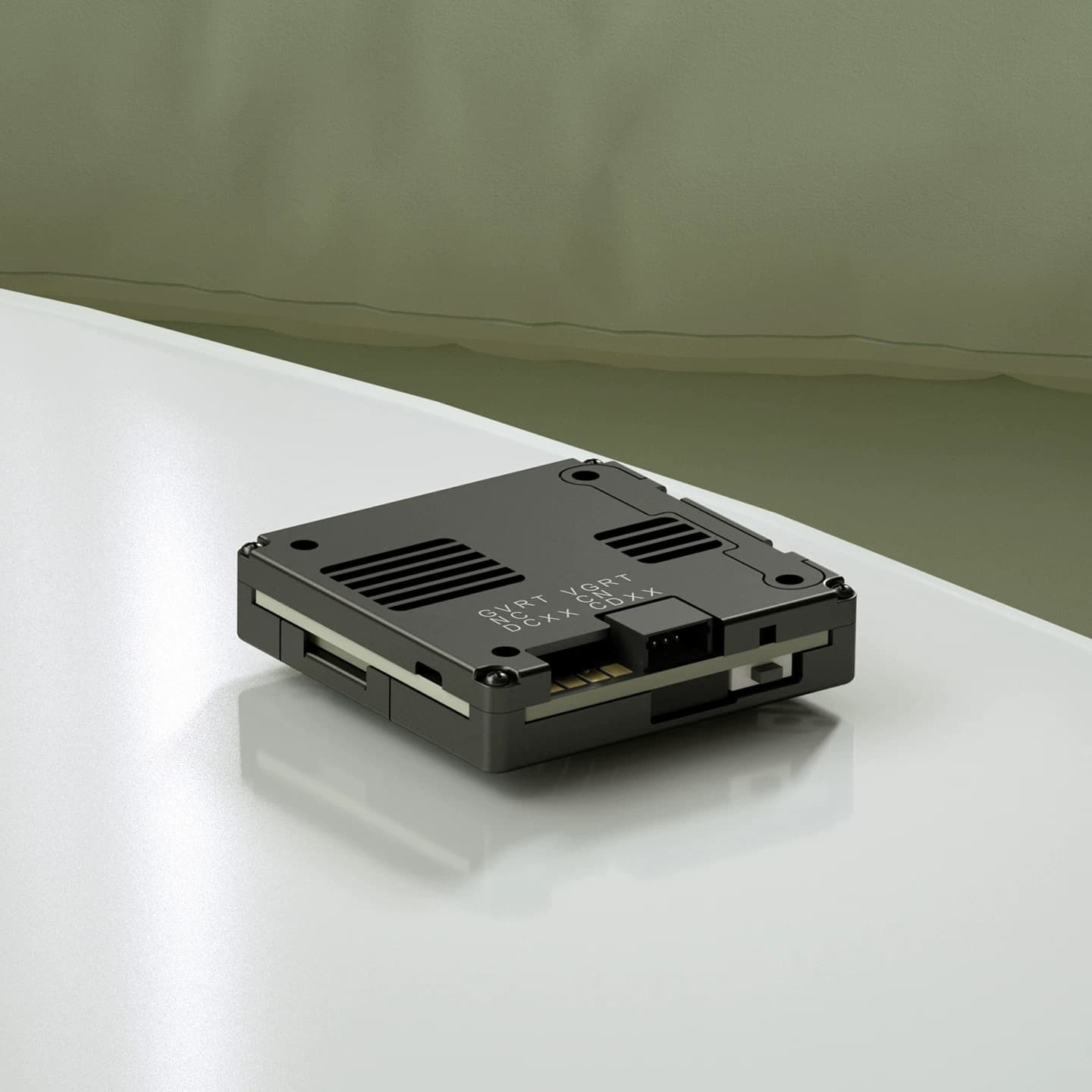

VTX Module
• Model: Avatar V2 Pro Module (Dual Antennas)
• Frequency Range: 5.725–5.850 GHz
• Transmit Power (EIRP):
• FCC: <30 dBm
• CE: <14 dBm
• SRRC: <20 dBm
• MIC: <25 dBm
• I/O Ports:
• JST1.0 × 4 (power input)
• JST0.8 × 6 (USB)
• Mounting Pattern: 25.5 × 25.5 mm, 20 × 20 mm
• Dimensions: 33.5 × 33.5 × 10.5 mm
• Storage: 32 GB
• Recording: 1080P / 720P
• Weight: 15.4 g
• Operating Temperature: -20°C to 40°C
• Channels: 8
• Input Voltage: 6V–25.2V
• Supported Flight Controller Systems:
• Betaflight
• INAV
• Fettec
• ArduPilot
• KISS
• OSD: Canvas Mode
• Average Latency: 22 ms
• Antennas: 2 (IPEX)
Avatar V2 Antenna
• Polarization: LHCP
• Frequency Range: 5600–6000 MHz
• Gain: 1.9 dBi
• VSWR: ≤1.5
• Impedance: 50 Ω
• Connector: IPEX-1
• Dimensions: R15 × 45 mm
• Weight: 2 g
Packing List
• USB extension cable ×1
• 4-pin silicone cable ×1
• M2 × 4 mm screws ×8
• M2 × 5 mm screws ×4
• M2 × 6 mm screws ×4
• M2 × 14 mm screws ×4
• M2 × 5 × 0.5 mm washers ×4
